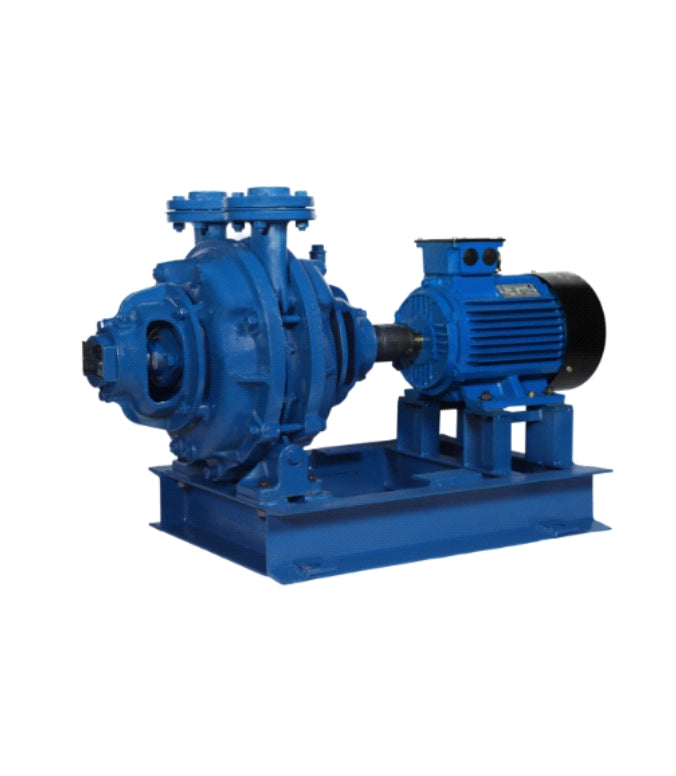

DV 40 / 50 Motor Coupled Pump

Feature

• Motor withstand wide voltage fluctuations
• Impeller of high quality bronze material
• Designed to prevent overloading and motor burning
• Dynamically balanced rotating parts ensure minimum vibrations

Technical Specifications

• Vacuum : upto 640MM of Mercury
• Air Flow Rate : upto 162 M3/HR (at mean sea level)
• Power Ratings : 3.7 to 7.5 kW (5 to 10 HP)
• Voltage Range : 375 to 455 Volts (Three Phase)
• Insulation : F Class
• Protection : IP 55

Application

• Priming of large pumps
• Evacuation of air from suction pips and chambers
• Specific applications : Twist drilling machine, removing water from pulp layer, labelling, bottle filling de-odorising
• General applications: Drying, Evaporation, Distillation, Filtration, Sterilisation, Condensation, degasification, Sucking Gases.
• Extrusion machines
• Printing machines
• Confectionery machine
